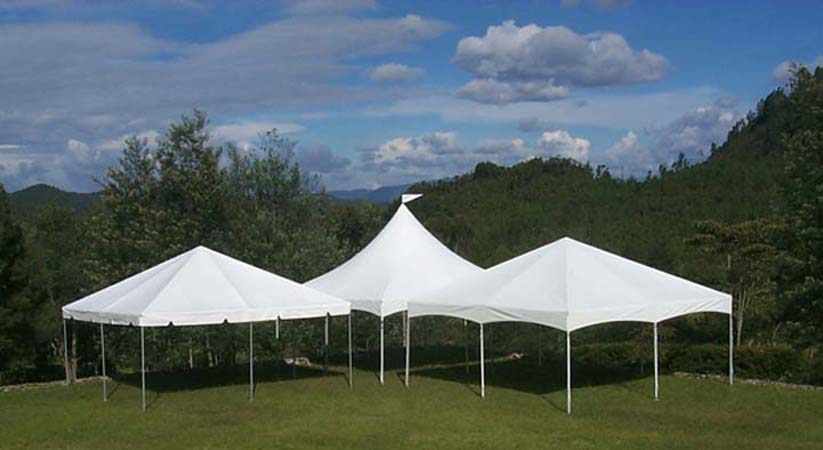

TRIO® FRAME SYSTEM

• Engineered and wind load tested.*
• 6005 T-6 anodized marine aluminum, 1 3/4″ OD, 1/8” wall thickness with exclusive alignment line.
• Color-coded end caps for easy identification of tubing lengths and keeping your tubing clean by keeping dirt out.
• Patented cast aluminum fittings and detachable cast aluminum base plates.
• Fail-safe steel snap button assembly.
• Leg height is adjustable from 6’6”, 7’, 7’6” and 8’.
• Legs telescope down to 5’ for easy installation of tent cover and other accessories.
• Cover pitches for the TRIO® are: 10’ wide – 2’6”; 15’ wide – 3’9”; 20’ wide – 5’. Add center mast height for cover pitches of High-Peak style.
• Add center mast height for Hi-Peak style.
• Additional cross-brace systems are available for any size Trio frame.
• Stakes, ropes and ratchets are sold separately.
  *Cross-bracing required on frames larger than 20’ x 20’ to meet wind load requirement Trio® Covers
• Standard covers are manufactured of an exclusive high quality 1300 denier, 18 oz. lacquer coated black-out vinyl material which makes the cover easier to handle, store, install and clean.
• UV treated, flame retardent that meets the California Fire Marshal Title 19 and NFPA 701, water repellent, mildew resistant
• Available in 13oz – 18oz solid colors or stripes.
• Also available in 18oz. SkyLite™ Clear vinyl with embedded filament lines that help prevent the cover from shrinking or expanding.
• “West Coast” style covers can be manufactured upon request.
• Expandable mids for the Traditional style are available in 10’ and 20’
• Seams are 100% electronically welded.
• Stainless steel buckles prevent unsightly rust stains on your cover.
• Double reinforced straps and buckles.
• Vinyl grommets installed by R.F. welding on expandable covers.
• Cover storage bag included USE OF MID EXTENSIONS
  All TRIO and CLASSIC PLUS Traditional tent covers are available in either a single piece or expandable design. Expandable covers have the versatility to extend the standard square tent to lengths over 100-ft. The diagram shows how the loops from the extension fit through grommets on the main tent cover and then loop-lace together. A vinyl flap then covers the lacing for a clean, seamless look. An expandable cover can ultimately save you money by purchasing one tent and having the versatility of a multi-sized tent. This feature can help accommodate you and your customers’ needs by providing the perfect size tent for any occasion. Traditional Cover with Straight Valance
  Available upon request.
